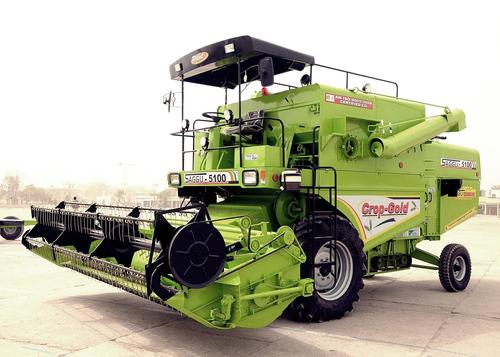

Harvester Combine Specially for Wheat paddy and mustard Technical Specifications
|
Engine
|
|
Type
|
Ashok Leyland Model ALU-400
|
|
Power
|
110 HP at 2200 RPM
|
|
Air cleaner
|
Combination of Dry (paper element) and oil bath
|
|
Cutting mechanism
|
|
Cutter bar width
|
4265 mm
|
|
Cutting height
|
55-1250 mm
|
|
Reel
|
|
Type
|
Pick up
|
|
Speed Adjustment
|
By means of mechanical variator
|
|
Height adjustment
|
Hydraulic
|
|
Threshing Drum
|
|
Width
|
1270mm
|
|
Diameter
|
600 mm
|
|
Adjustment
|
Mechanical
|
|
Straw Walker
|
|
No
|
5
|
|
No of steps
|
5
|
|
Length
|
3800 mm
|
|
Width
|
230 mm
|
|
Cleaning sieve
|
|
Size of small sieve by
|
765x1220
|
|
Size of large sieve by
|
1450x1250
|
|
Type
|
Mechanical Adjustment
|
|
Tyres
|
|
Front
|
18.4/15/30 (14 PR)
|
|
Rear
|
9.16 (12 PR)
|
|
Road Speed
|
|
Forward 1st Gear
|
2-4 km/hr
|
|
2nd Gear
|
4-8 km/hr
|
|
3rd Gear
|
8-20 km/hr
|
|
Reverse
|
4-8 km/hr
|
|
Track
|
|
Wheel track
|
2435 mm
|
|
Wheel base
|
3555 mm
|
|
Steering and brakes
|
Hydraulic
|
|
